Digital Cabinet Lock D0 Series
◉Keyless & Digital
◉Multiple Unlock Way: Fingerprint, Passcode, RFID Card and Bluetooth Tuya APP (Smartlife APP)
◉Motorized lock system
◉Convenient
◉Widely used in Drawers, Cabinets, Wardrobes and More
D0 Series

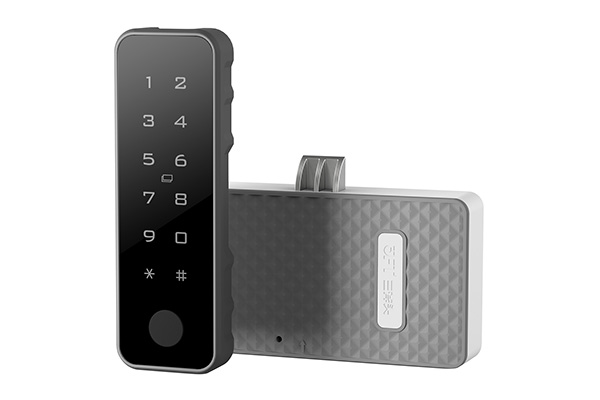

D0S022

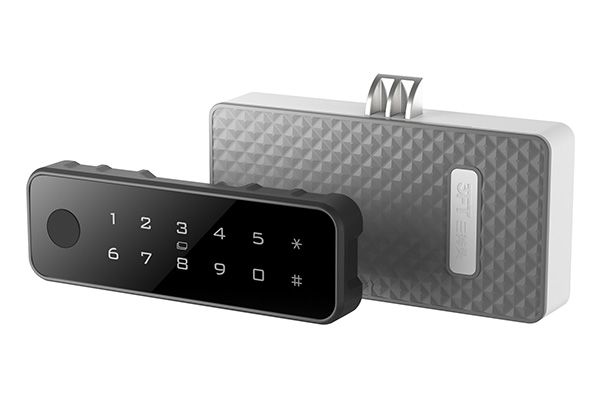

D0S023

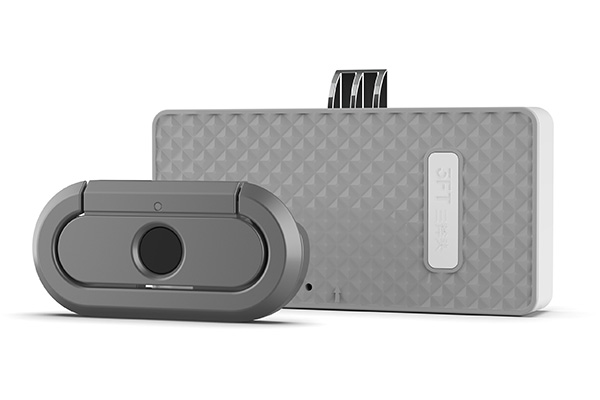

D0S025
Specifications
| Model | D0S022 | D0S023 | D0S025 | |
|---|---|---|---|---|
| Image |
|
|
|
|
| Lock Console | Size | 35 x 106 x 25 1.38" x 4.17" x 0.98" |
106 x 35 x 25 4.17" x 1.38" x 0.98" |
- |
| Material | Touch Screen + Plastic | Zinc-alloy | ||
| Finish | Molding | Plating | ||
| Unlock Way | Fingerprint | Max 50 fingerprints | Max 20 fingerprints | |
| Password | Max 250 passwords | - | ||
| RFID Card | NFC / Mifare Card, Max 250 cards | - | ||
| Mobile APP | Bluetooth Tuya APP or Smartlife APP | - | ||
| Lock Body | Lock System | Driven | Latch | Lock Body |
| Motor | Zinc-alloy | Plastic | ||
| Working System | Working Voltage | Working Current | Static Current | |
| 3.7V～4.5V | ＜50mA | ＜80μA | ||
| Power Supply | 4xAAA alkaline Battery | |||
| Backup Power | Type-C charging wire connecting with power bank | |||
