It’s easy way to upgrade your drawer into a vault which can keep your jewelry and important documents and items safe. No need the drill a hole on the wall, what you need is to prepare a front drawer door and screwdriver.
Tool
1. Power On

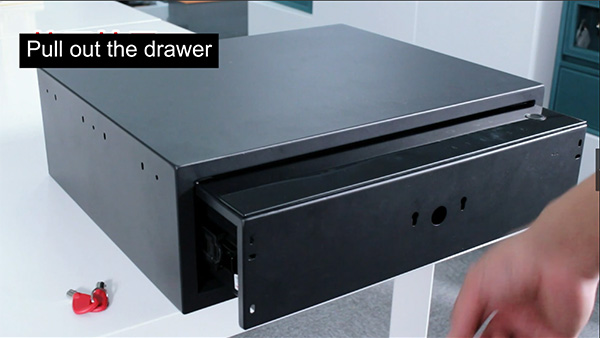

1-1. Pull out the drawer

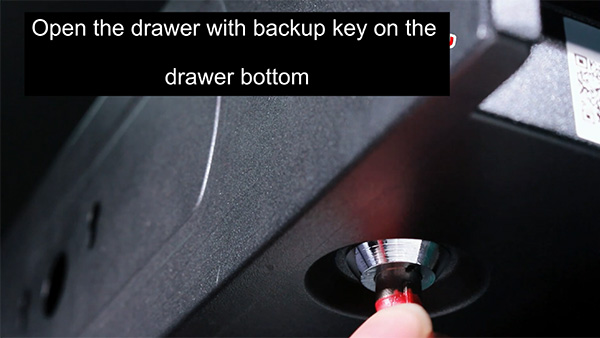

1-2. Open the drawer with the backup key on the bottom of the drawer

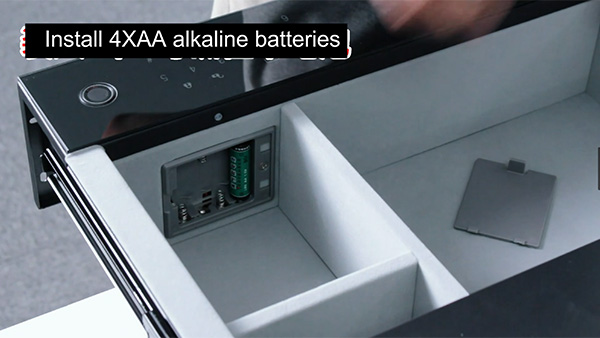

1-3. Uncover the battery cabin and install 4XAA alkaline battery

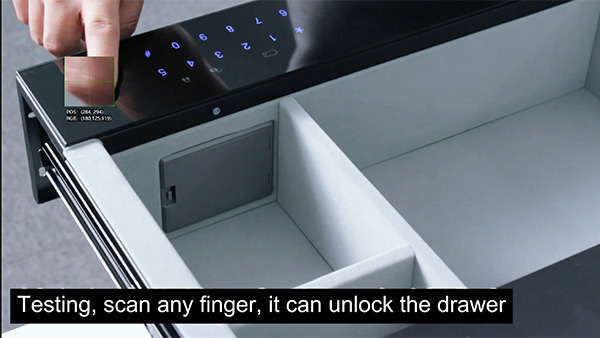

1-4. Testing, Scan any finger to check if the drawer can work well
2. Install the steel drawer into the cabinet

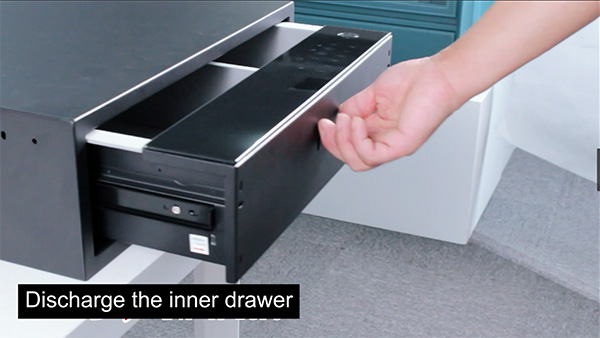

2-1. Discharge the inner drawer

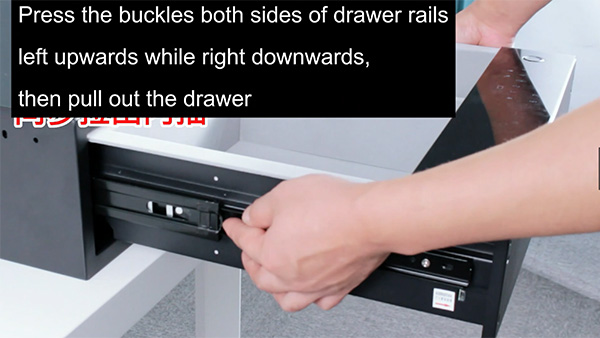

Press the buckles both sides left upwards while right downwards, then pull out the drawer.
2-2. Install the outer safe box

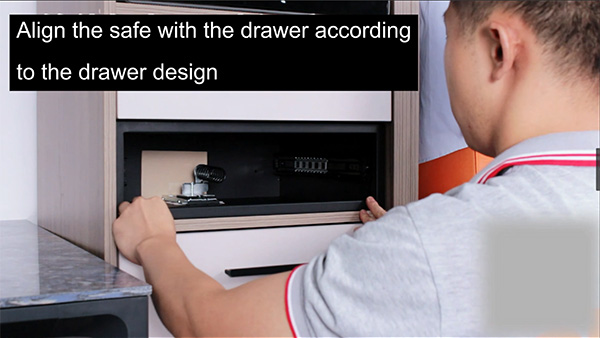

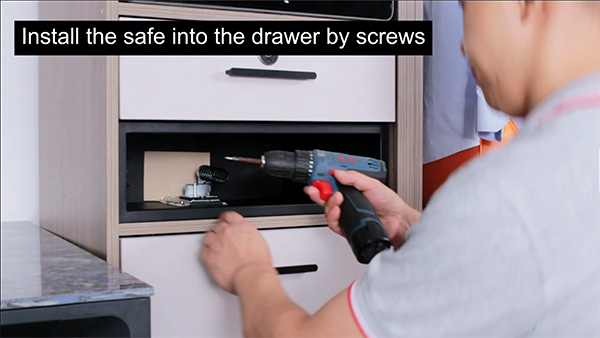

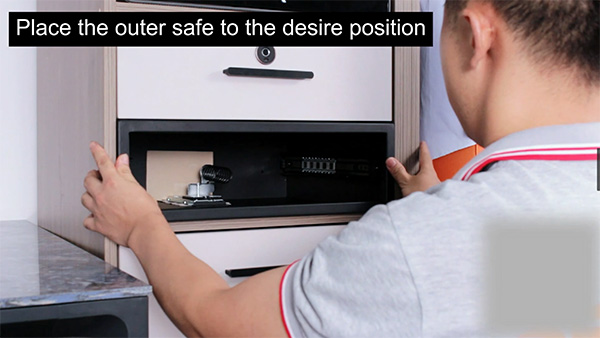

Place the outer safe to the desire place, align the safe with the cabinet then fix the safe with screws.
2-3. Install back the inner drawer

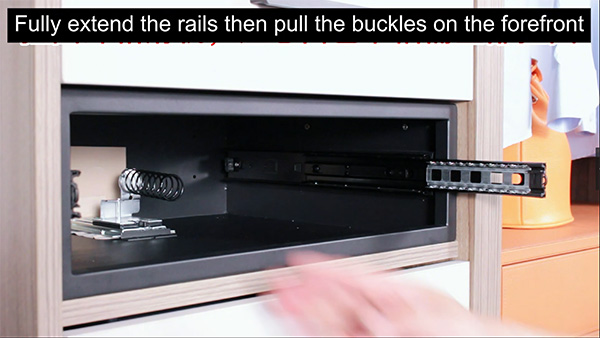

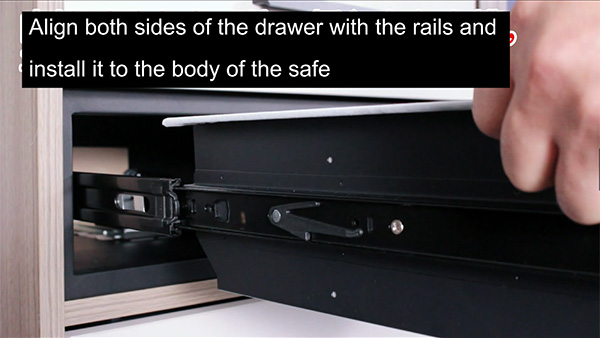

Fully extend the rails and pull the buckles on the forefront, the align the both sides of inner drawer with the rails and install back the inner drawer into the outer safe.
2-4. Testing

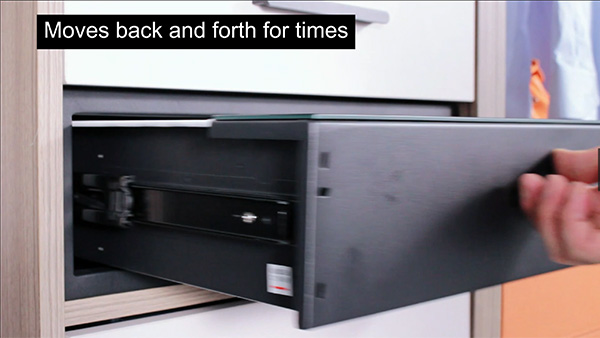

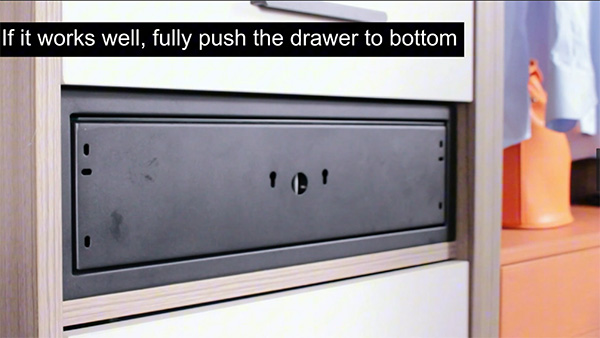

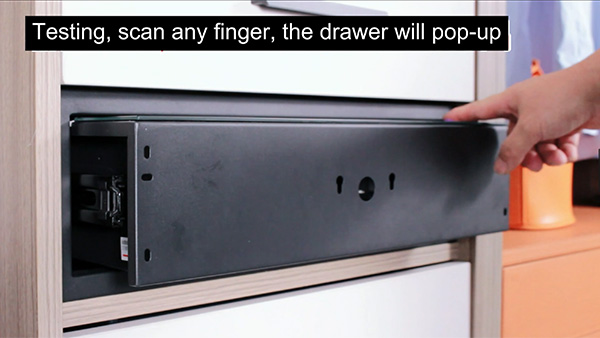

Moves back and forth for times, if moves smooth, push the drawer to the bottom, fully install the inner drawer back. Finally, Scan any finger to check if the drawer will pop-out automatically.
3. Install the Drawer Door (A front wood drawer door with a handle)

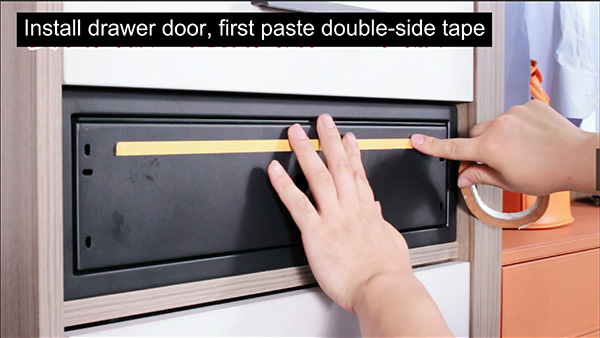

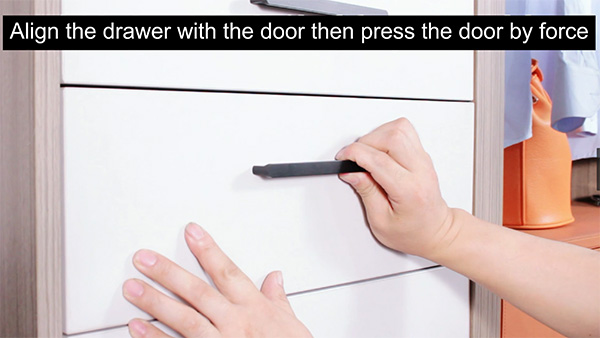

3-1. Paste the double-side tape on the steel drawer, align the wood drawer door with the steel drawer, then press the door by force

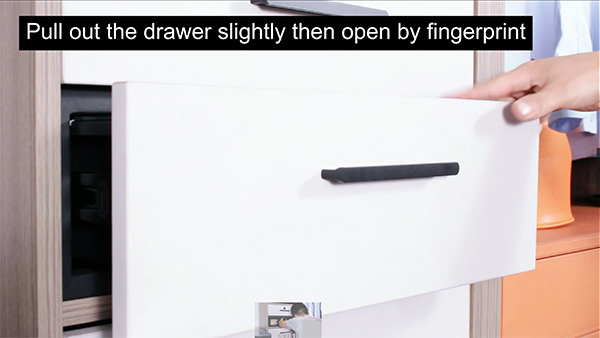

3-2. Pull out the drawer slightly and scan a finger to unlock the drawer

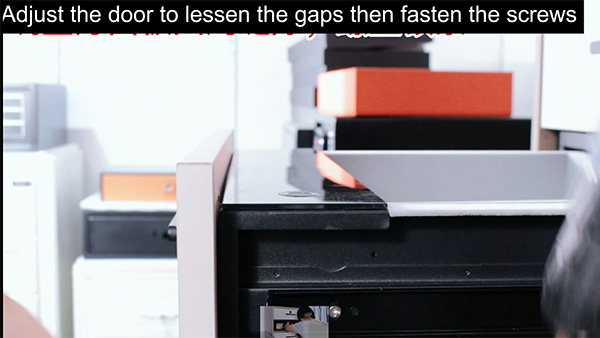

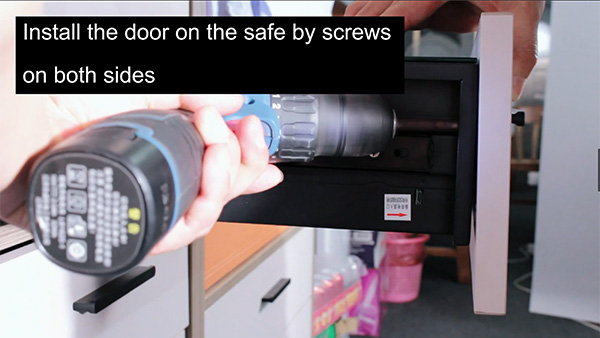

3-3. Install the wood door on the steel drawer with screws on both sides, adjust the door and lessen the gap then fasten the screws

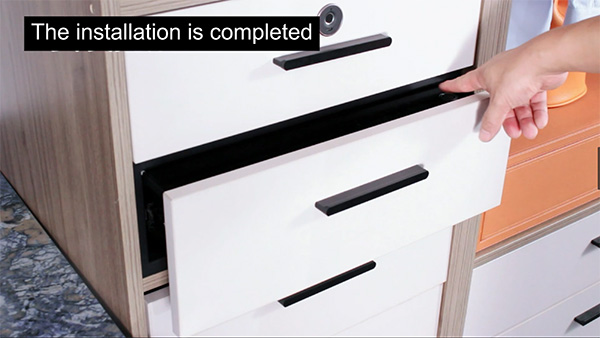

3-4. The steel drawer is installed into the wood drawer successfully
4. Install the Drawer on the Cabinet

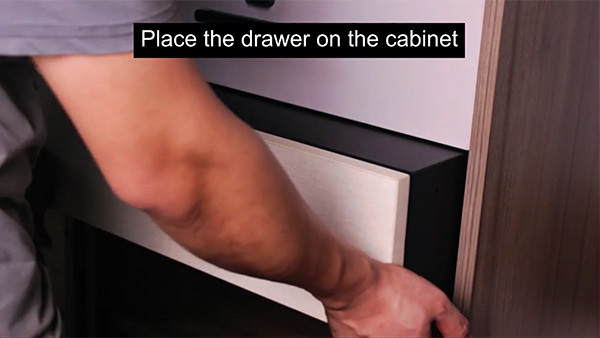

4-1. Place the drawer on the cabinet

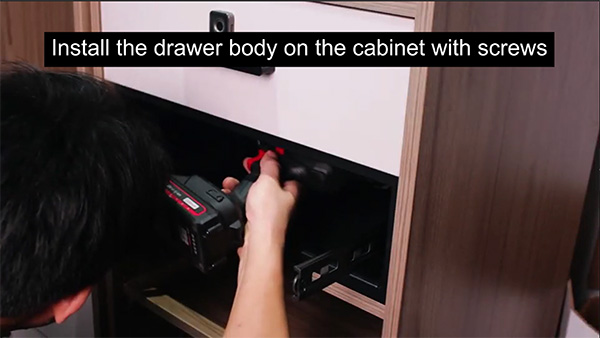

4-2. Install the drawer body on the cabinet with screws

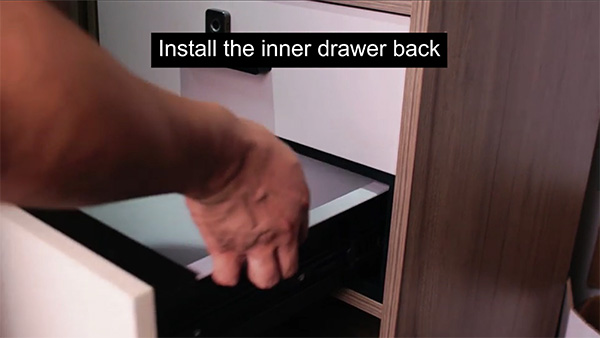

4-3. Install the inner drawer back
