How to install drawer safe

It’s easy way to upgrade your drawer into a safe box. No need the drill a hole on the wall, what you need is to prepare a front drawer door and screwdriver.

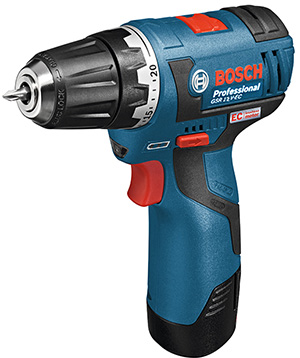

Tool

1. Testing

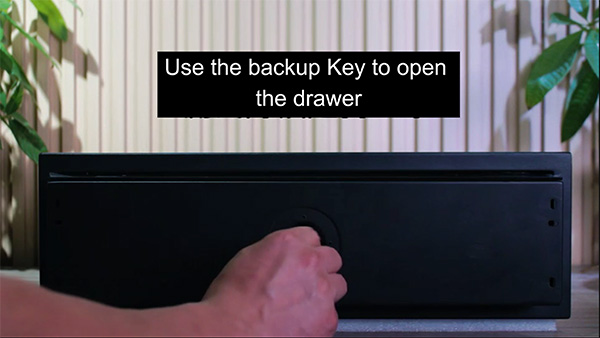

1-1. Use the backup Key to open the drawer

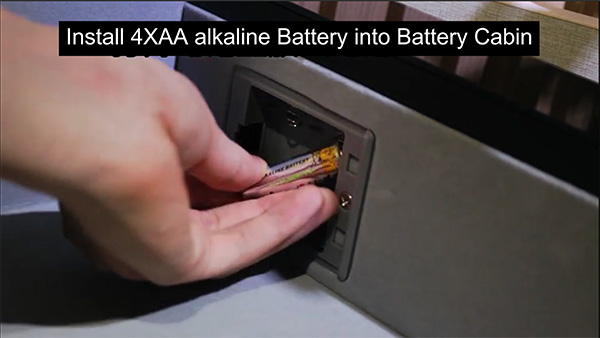

1-2. Install 4XAA alkaline Battery into Battery Cabin

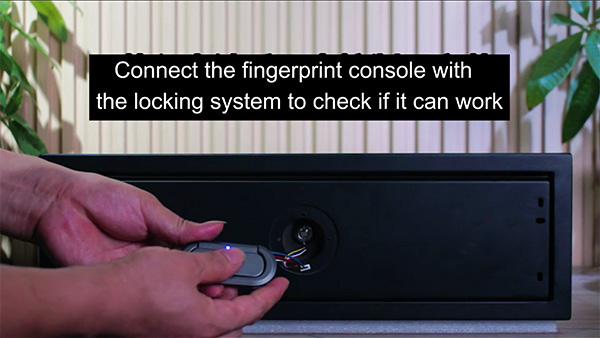

1-3. Connect the fingerprint console with the locking system to check if it can work

2. Install the front drawer door

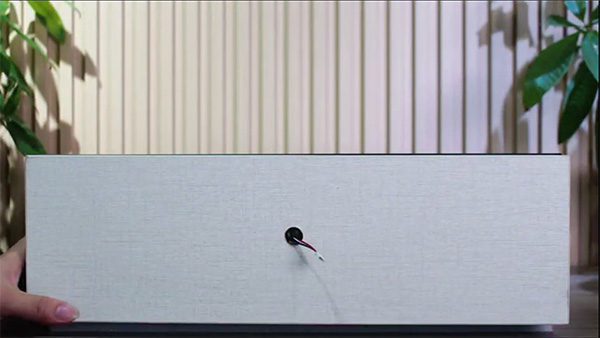

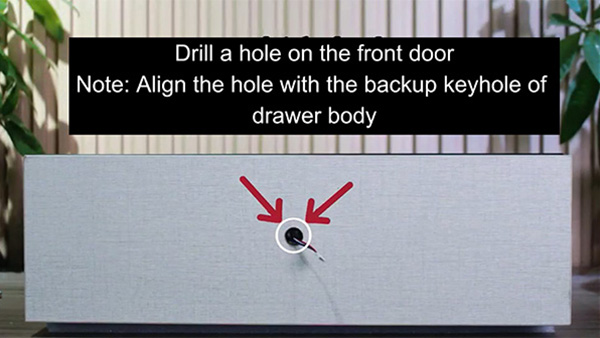

2-1. Drill a hole on the front door. Align the hole with the backup keyhole of drawer body

2-2. Stick the drawer door board on the front drawer body

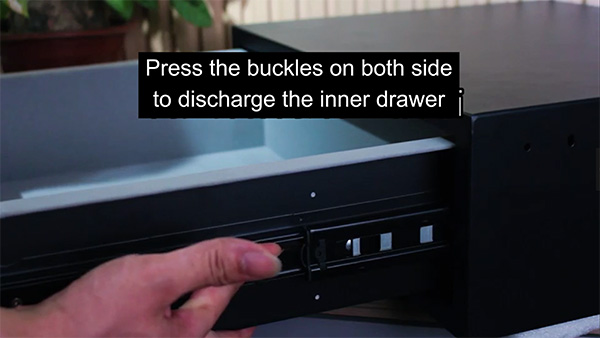

2-3. Remove the inner drawer from the drawer body

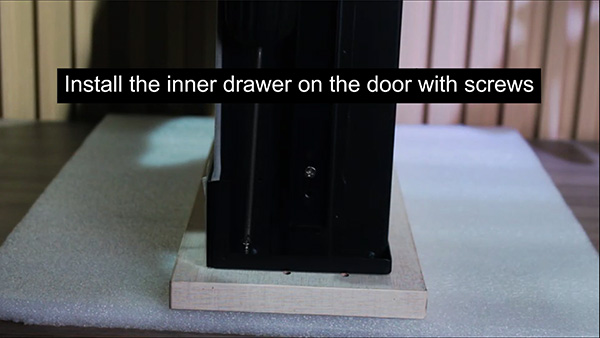

2-4. Install the inner drawer on the door board with screws

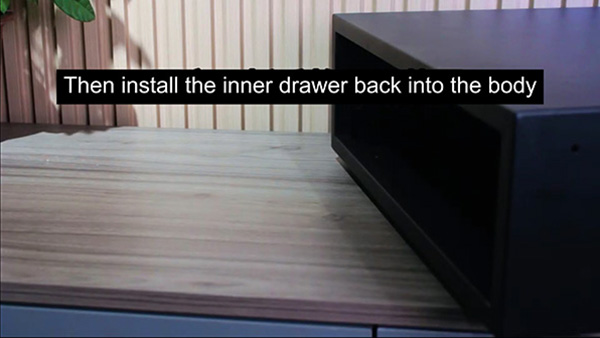

2-5. Then install the inner drawer back into the body

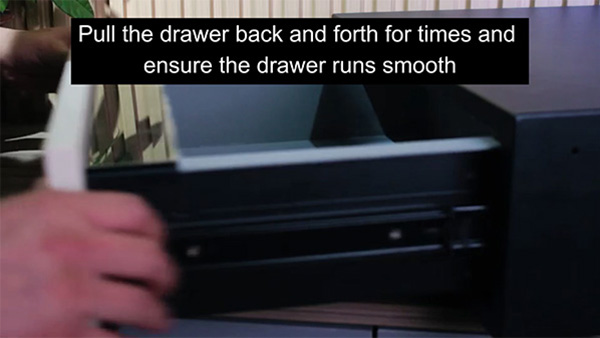

2-6. Pull the drawer back and forth for times and ensure the drawer runs smooth

3. Install Fingerprint Console

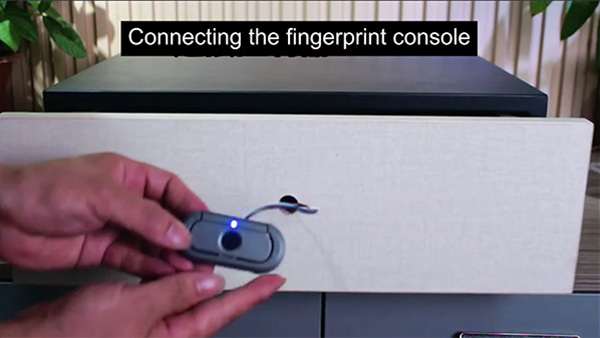

3-1. Connecting the fingerprint console,tuck up the extra wire into the hole

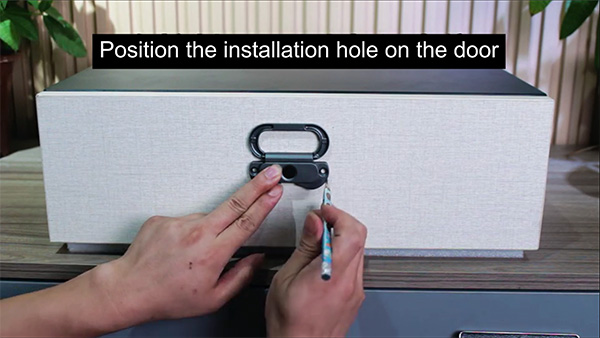

3-2. Straighten the console, position the installation hole on the door

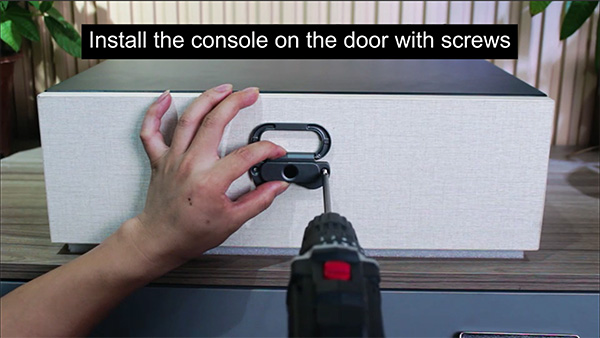

3-3. Install the console on the door with screws

4. Install the Drawer on the Cabinet

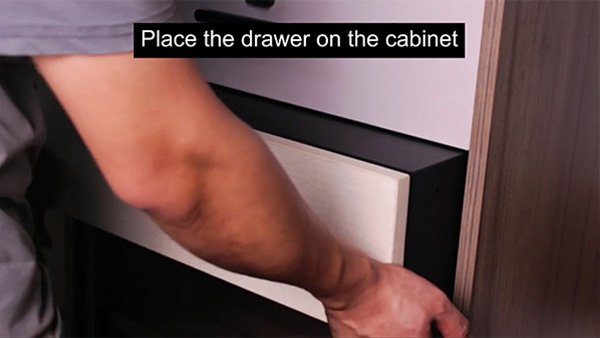

4-1. Place the drawer on the cabinet

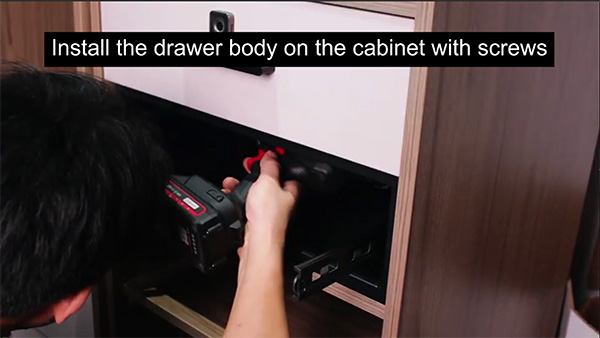

4-2. Install the drawer body on the cabinet with screws

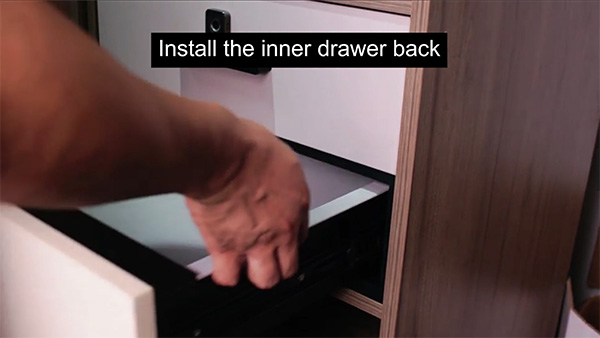

4-3. Install the inner drawer back
