How to replace the motor in the drawer safe

Motor malfunction will cause the drawer safe doesn’t work. To keep your belongings secure it need to replace the motor immediately. Follow the steps as below

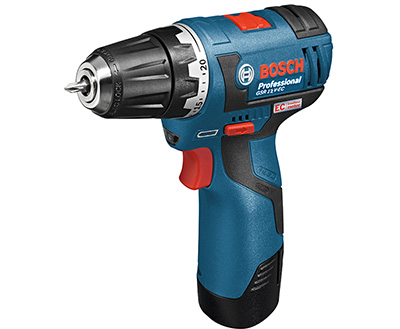

Tool

1. Detach the inner drawer

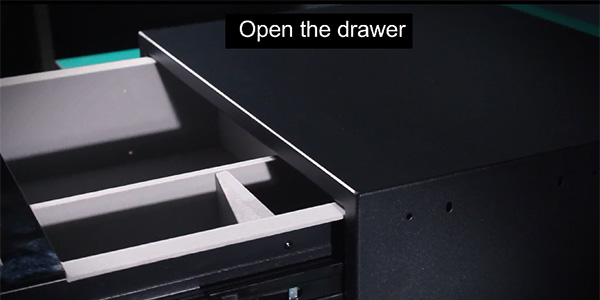

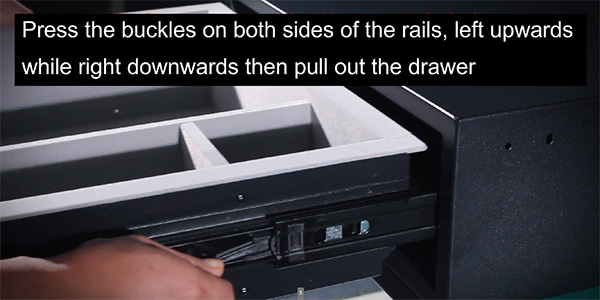

Open the drawer by key, press the buckles on both sides of the rails, left upwards while right downwards then pull out the drawer, stand the drawer upright, motor on the top.

2. Remove the motor

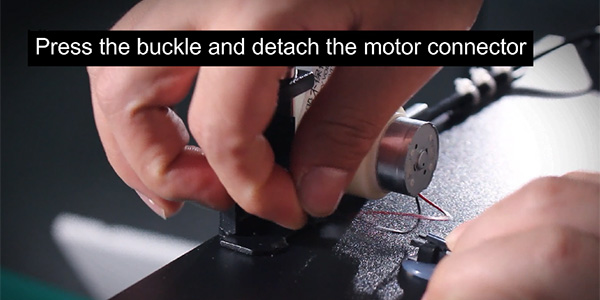

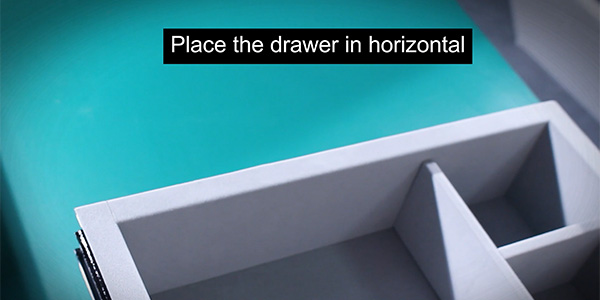

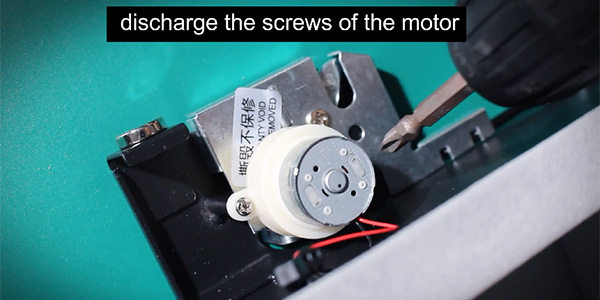

Press the buckle and detach the motor connector, place the drawer in horizontal, discharge the screws, remove the old motor.

3. Replace a new motor

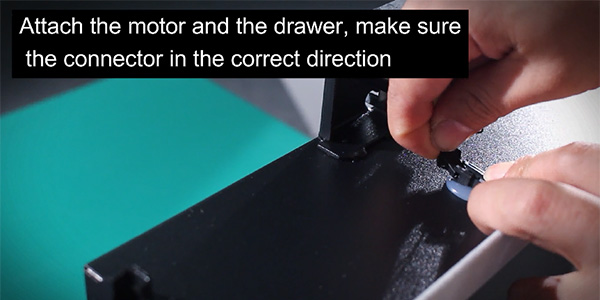

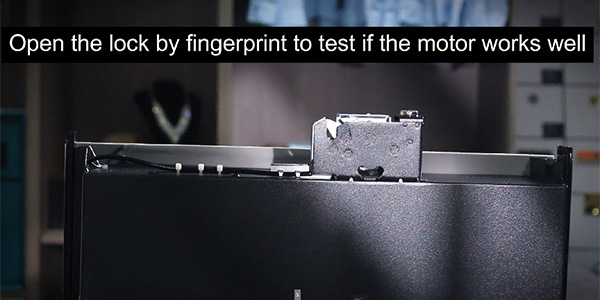

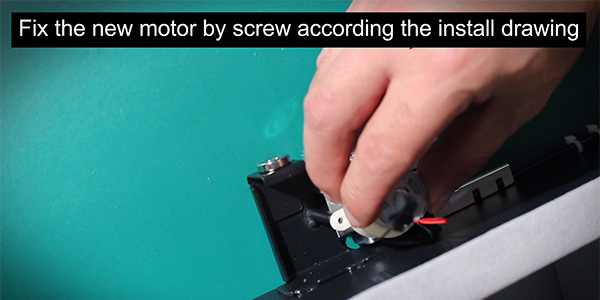

Fix the new motor by screw according the install drawing, attach the motor and the drawer, make sure the connector in the correct direction, open the drawer by fingerprint to check if the motor works well.

4. Install the inner drawer back

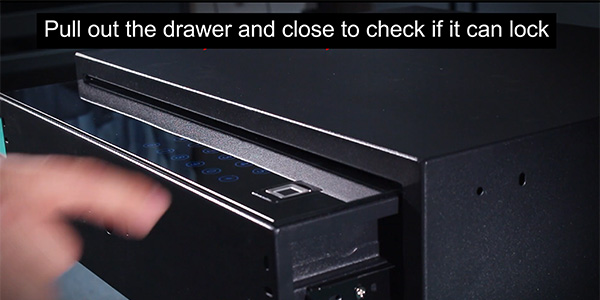

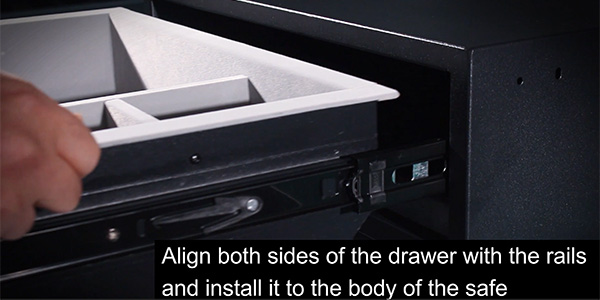

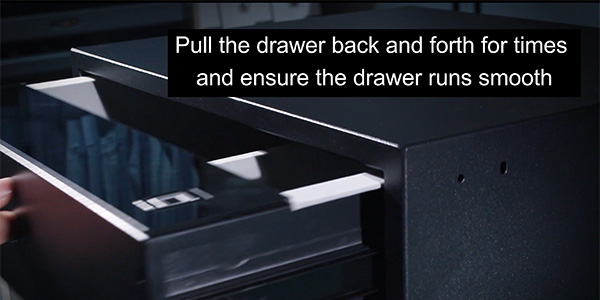

Align both sides of the drawer with the rails and install it to the body of the safe, pull the drawer back and forth for times and ensure the drawer runs smooth, lock the drawer and open it. The drawer in good condition.
