How to Set D5 Series Safe Drawer

15 Apr 2025

To insecure your belongings, it’s very important to register your fingerprints before using. (Make sure to take out the backup key and keep them safe)

1. Factory Setting

1-1. Any fingerprint can unlock the safe

1-2. Default code: 1-2-8-4

1-3. Chenge the passcode before registering new fingerprints

1-4. Take our the backup key and keep it properly

2. Change the Password

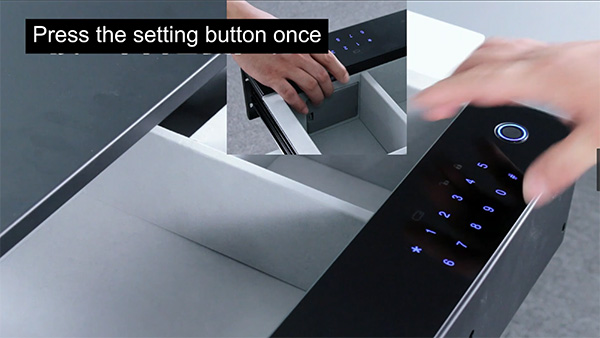

2-1. Scan any finger then open the drawer, press the setting button once

2-2. Enter the current password then enter # to confirm, the green light flashes

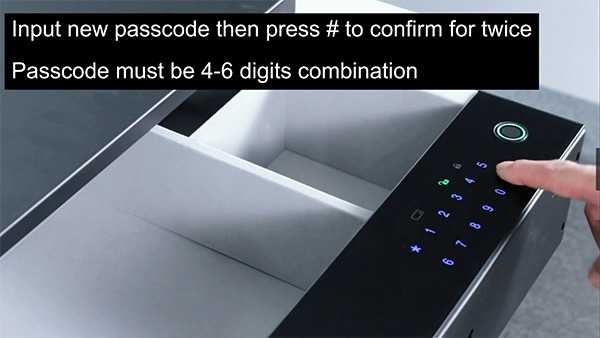

2-3. Enter the new password then # to confirm for twice

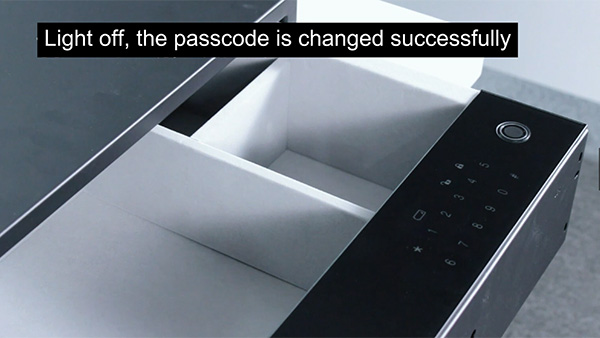

2-4. Light off, the password is changed successfully

Note:

The same steps to add more passwords, max 10 passwords

The first and second passwords are the master passwords. It’s used for unlocking and setting

Before using, please make sure to change the password and add at least 1 fingerprint

How to Set D5 Series Safe Drawer
How to Set D5 Series Safe Drawer
How to Set D5 Series Safe Drawer

3. Register New Fingerprints

3-1. Scan any finger then open the drawer, press the setting button once

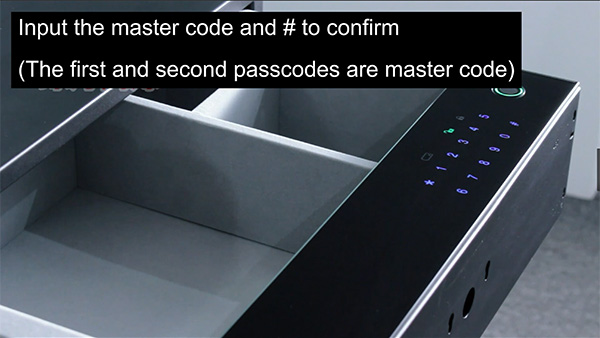

3-2. Enter the master password then enter # to confirm, the green light flashes

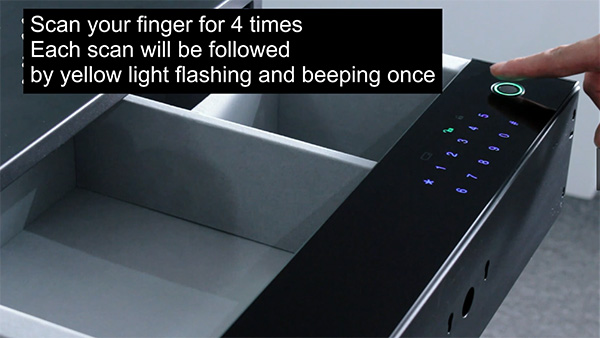

3-3. Scan your finger for 4 times at slightly different angles, each scan will be followed by yellow light flashing and beeping once

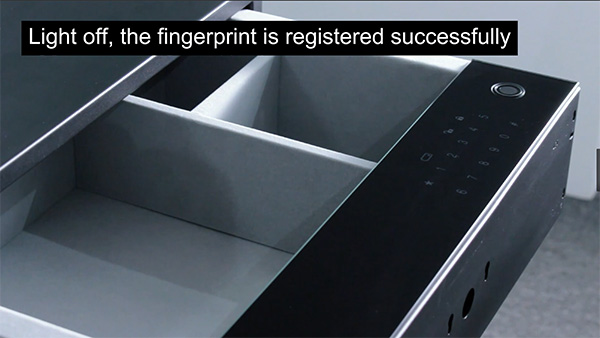

3-4. Light off, the new fingerprint is registered successfully

Note:

The same steps to register more fingerprints, max 40 fingerprints

To add at least 1 fingerprint to the lock to protect your belongings safe

Make sure the fingerprint works well it’s better add more than 3 fingerprints

How to Set D5 Series Safe Drawer
How to Set D5 Series Safe Drawer
How to Set D5 Series Safe Drawer
How to Set D5 Series Safe Drawer

4. System Initialization

4-1. Open the drawer by registered fingerprint or password

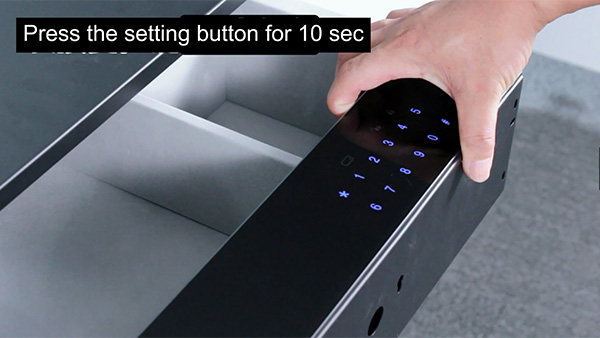

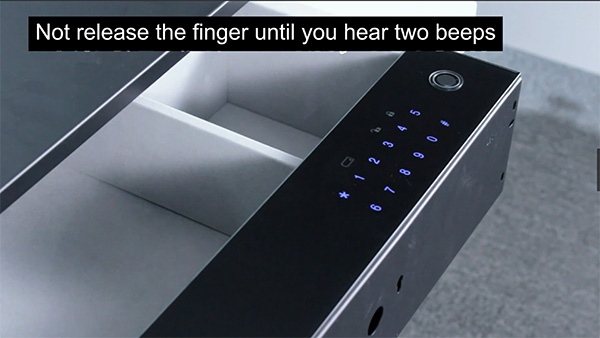

4-2. Press the setting button for 10 sec, holding. Then release until you hear "beep, beep"

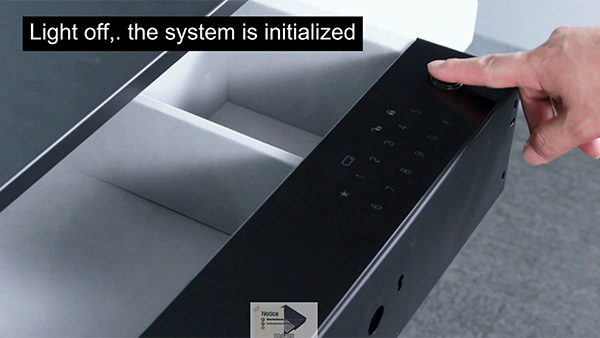

4-3. Light off, the system is initialized

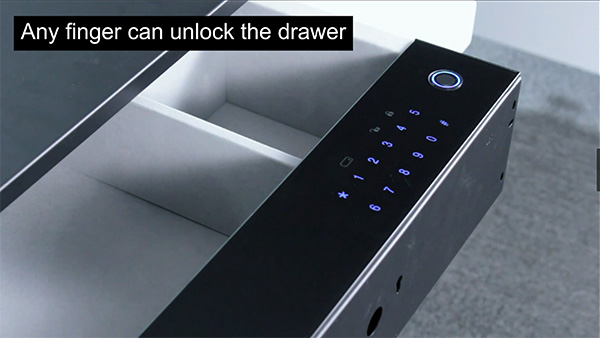

4-4. Any finger can unlock the drawer

How to Set D5 Series Safe Drawer
How to Set D5 Series Safe Drawer
How to Set D5 Series Safe Drawer
How to Set D5 Series Safe Drawer
